In this section, we will briefly introduce a few basic signal types that are commonly used in conceptual ocean acoustics discussions.

Sine Wave#

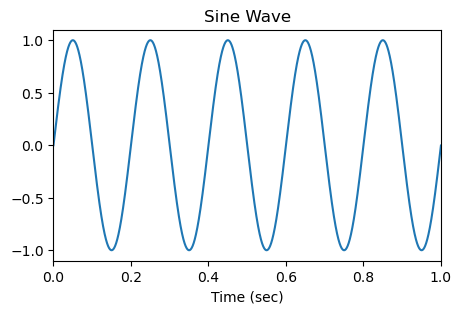

A sine wave is a signal with constant amplitude and frequency that can be described by:

\(y(t) = A \sin(2 \pi f t + \mathcal{\phi)}\),

where:

  • \(A\) - peak of the deviation of the function from zero

  • \(f\) - the number of oscillations occurring within a second

  • \(\phi\) - where in the cycle the wave is at zero (in radians)

../_images/52b78d4b3859ee179e0ead9054770c2141db3c06f1267625810d9c484c6c87b0.png

Chirp#

Another example of a signal is a chirp, or a signal with an increasing or decreasing frequency.

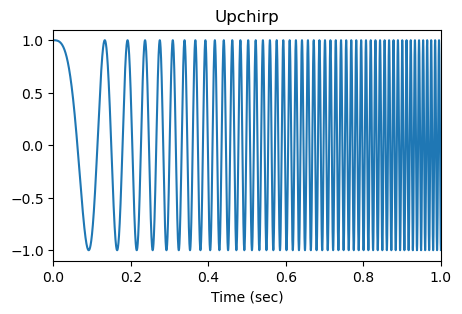

We will generate example with linearly increasing frequency from 1Hz to 10Hz.

../_images/3e237e9395c94f7d050ddb2d6051217d0ae0c83243e465badd71f633b0f66efa.png

Often when we want to transmit a chirp, we would taper the beginning and end of the signal, so that signal plays nicely with the physical turing on and off the transducer.

We can achieve this by “windowing” a signal. The same technique is also often used to “cut out” part of a long signal.

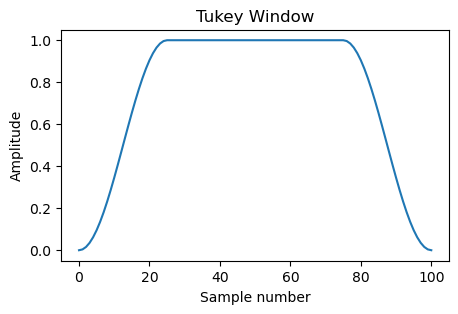

There are many different window functions (see here for a list in scipy). In the example below, we generate a Tukey window and use it to taper a chirp.

../_images/ee2b5dde7b9506d3e8376a8a97a3ee000bb6b29a95db0f65d20c18df8d21374a.png
../_images/d7ef8527e8f9c83cd6cac53131f2b5895dd76d91c49a6ca014898722314500a3.png

Impulse#

../_images/1eaaac95e7f066b309bd76aa5adcb088815d32439a97d20a8a24f1ee54f49874.png
